Connector A:
HDMI,VGA,RCA
Application:
Projector,DVD Player,Computer,Multimedia,TV BOX,Monitor,Television
Type:
HDMI Cables
Brand Name:
HDmatters
Packing:
Carton Box
Gender:
Female-Female
Shielding:
Combination
Outer Diameter:
converter
Connector B:
HDMI
Version:
HDMI 1.4
Model Number:
OPM-49
Package:
No
Feature:
HDMI1.4
1. Introduction
ALL TO HDMI 4K CONVERTER BOX converts CVBS, YPbPr, VGA, HDMI and USB media to 720p and 1080p high definition 4k HDMI output. Respective stereo audio input is achieved for CVBS, YPbPr and VGA. Converter Box makes it convenient to connect such as DVD player, game player, Set-top box, PC and USB device etc. video sources. All inputs will be converted to high definition output. Excellent picture quality provided by the integrated noise reduction, advanced color process engine, dynamic luminance control, gamma control and 3D video decoder features.
2. Features
l 1x CVBS, 1xYPbPr, 1xVGA, 2x HDMI and, 2x USB inputs
l USB movie, picture and music playback
l 1280x1024,720p,1080p and 4K HDMI output
l PAL, NTSC and SECAM color systems supported
l -5% to +5% display ratio range control
l Auto Detect function (except USB)
l Brightness, contrast, color, sharpness, hue control
l Soft, Standard, Bright and Personal 4 preset picture modes
l Picture mode setting saved for respective source
l Geometry control for VGA input with auto tune function
l Capture USB picture and save as user defined logo
l Volume control
l Remote control
l Standby mode
Input formats
CVBS: PAL, NTSC, SECAM with stereo audio input
YPbPr: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576i/p, 480i/p with stereo audio input
VGA:640x480@60Hz, 800x600@60Hz, 1024x768@60Hz,
1280x1024@60Hz, 1280x720@60Hz, 1360x768@60Hz,
1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz with stereo
audio input
HDMI: 480i to 4K2K@30Hz
USB: MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG
Picture decode and MPEG1/2, MP3 audio decode
3. Package Contents
ALL TO HDMI CONVERTER BOX 1pcs
5V/2A DC power adaptor 1pcs
Operation Manual 1pcs
IR Remote (the battery is not included ） 1pcs

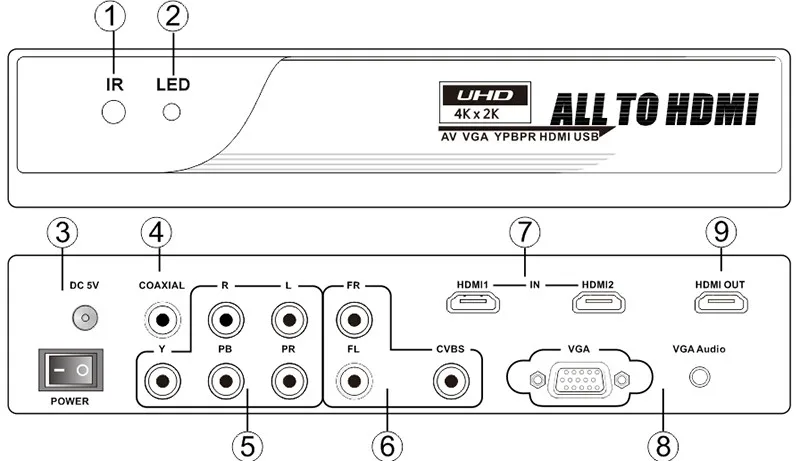

4. Panel Functions

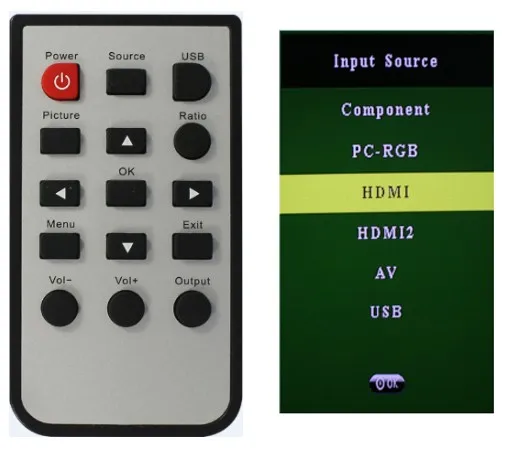

5. Setting
Power: Enter standby mode or re-enter normal mode
Source: Pop up source menu, press Up/Down button to select and press OK button to enter
USB: Enter USB source directly
Picture: Soft, Standard, Bright and Personal picture mode selection
Ratio: Adjust display ratio, -5% to +5% range can be set
Navigation buttons: Left, Right, Up and Down to navigate menu items or USB media files, press OK to enter
OK: Confirm and enter selection
Menu: Pop up main menu, press Menu button again to return
Exit: Close Menu or exit USB playback mode
Vol-: Decrease volume
Vol+: Increase volume
Output: Set 1280x1024@60Hz,720p@60Hz,1080p@60Hz or 4K2K@30Hz output format
Source menu
1. Press Source button to pop up source menu
2. Press Up/Down button to select source item
3. Then press OK button to enter
Main menu
General control
1. Press Menu button to pop up main menu
2. Press Up/Down button to select Picture,
Geometry or Setting menu
3. Then press Right button to enter

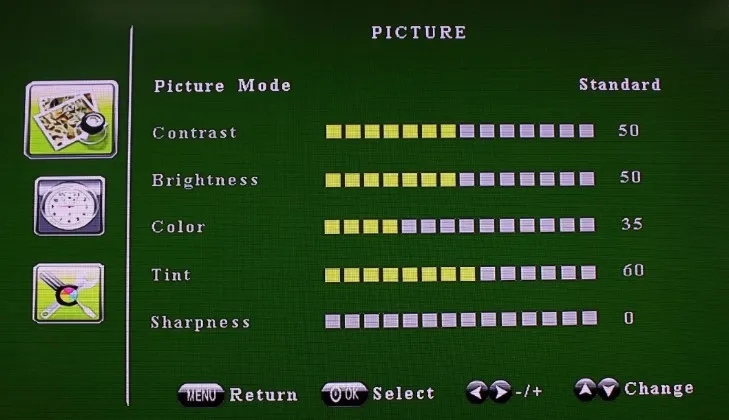

Control for Picture menu
1. Press Left/Right button to select Soft, Standard, Bright or Personal picture mode
2. Note that only Personal picture mode settings can be adjusted, others are pre-set modes
3. Press Up/Down button to select menu item
4. Press OK button to enter
5. Then press Left/Right button to adjust
6. Press Menu button to return, or press Exit button to close menu
Control for setting menu
1. Press Left/Right button to set Auto Detect function On or Off
2. Note that when Auto Detect is set On, the converter will automatically switch to the source which is connected with signal lately, except for USB source.

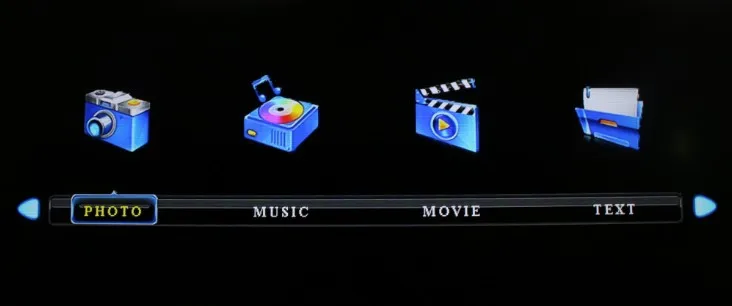

USB menu
General control
1. Press USB button directly or select USB from source menu to enter USB device playback mode
2. Press Menu button to pop up media type selection menu
3. Press Left/Right button to set which type of media to play
4. Press OK button to confirm
5. Press Left/Right to select USB device (disk alias)

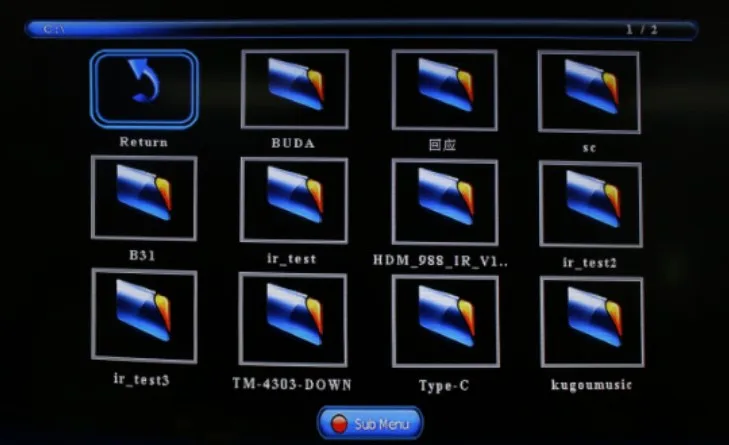

6. Press OK button to browse media file
7. Press Left/Right/Up/Down button to select media file
8. Press OK button to play

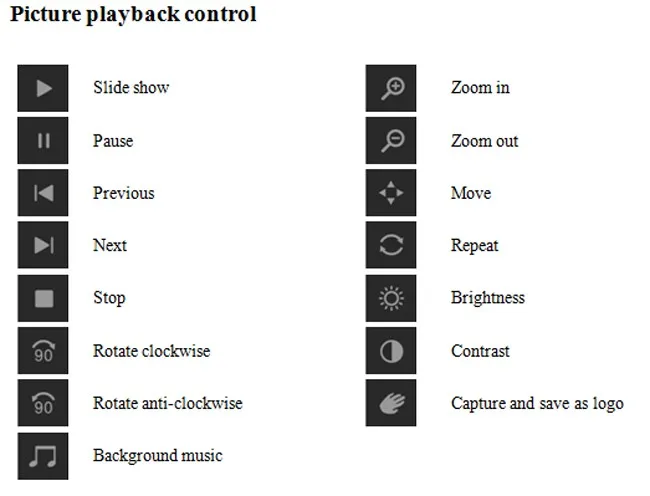

Picture playback control

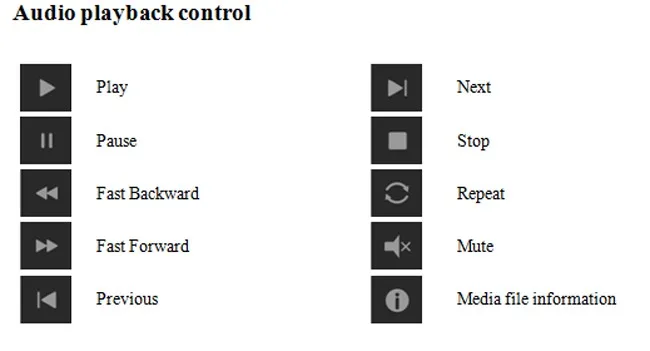

Audio playback control
Unit Type:
piece
Package Weight:
0.899kg (1.98lb.)
Package Size:
25cm x 20cm x 10cm (9.84in x 7.87in x 3.94in)
